- Horizontal above ground design fitted on legs with MS Construction.
- Complete with fabricated frame, holding drive and driven belt pulley, mounted on heavy duty bearing units, flat beltconveying design with return idler.
- Chain Conveyer totally enclosed casing.
- Single chain type fitted with Metal orRubber Flights, continuously driven through a Geared Motor.

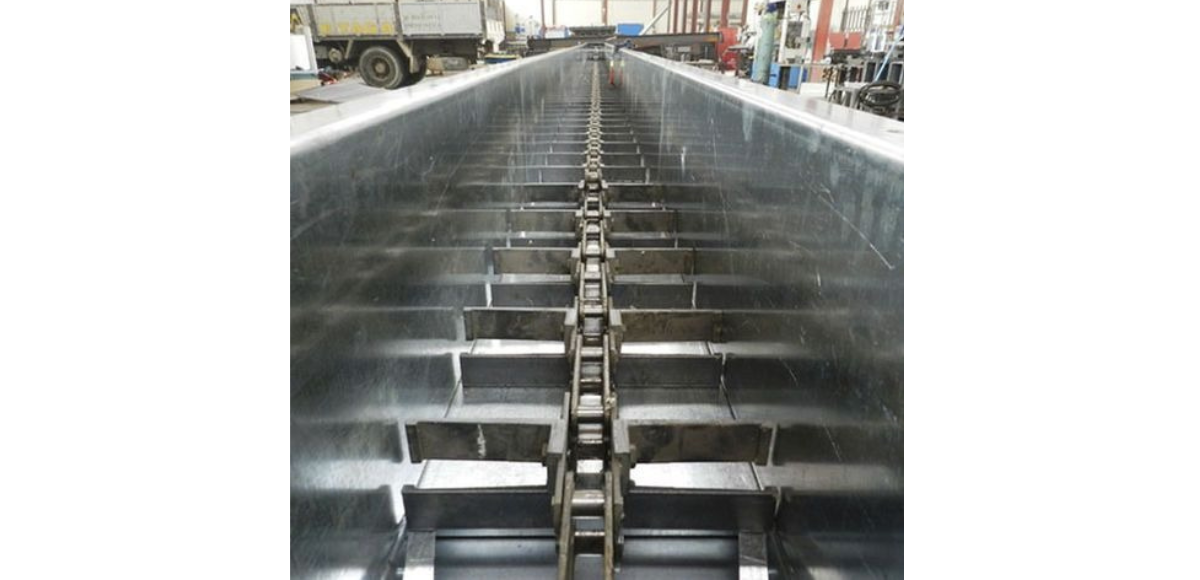

Infeed Chain Conveyor
Infeed Chain Conveyor For Paddy Straw Pelletizing (Pellet Mill).
Built with sturdy mild steel (MS) construction, it can operate horizontally or at an incline, ensuring efficient material flow.
Technical Features
Automation Features
- Analytics related to total working hours available on the HMI live status screen.
- The driving geared motor runs on VFD, with speed control set via the PLC.
- All analog and digital sensors are connected to the PLC for comprehensive monitoring.
- With AUTO mode, this equipment is interlocked to sync with other equipment.
- On-screen manual start/stop feature available for operator control.
- This equipment included in HMI live screen of this section.
PRODUCT INFORMATION
Min. Order(MOQ): 1 Piece
Quantity: 2
Power: 2.5*2 = 5kW
Capacity: 2.5*2 = 5TPH
IncludesSuitable: Geared Motor
Size: 900MM Width x 6000MM Length.
IncludesSuitable: Geared Motor
