- Horizontal above ground design fitted on legs with MS Construction.
- Prevents pellet breakage: Pellets are ‘coaxed’ rather than forced through the discharge system, ensuring exremely gentle movement of pellet to maintain quality and minimize fines.
- Double chain type fitted with metal or rubber flights, continuously driven by a geared motor.

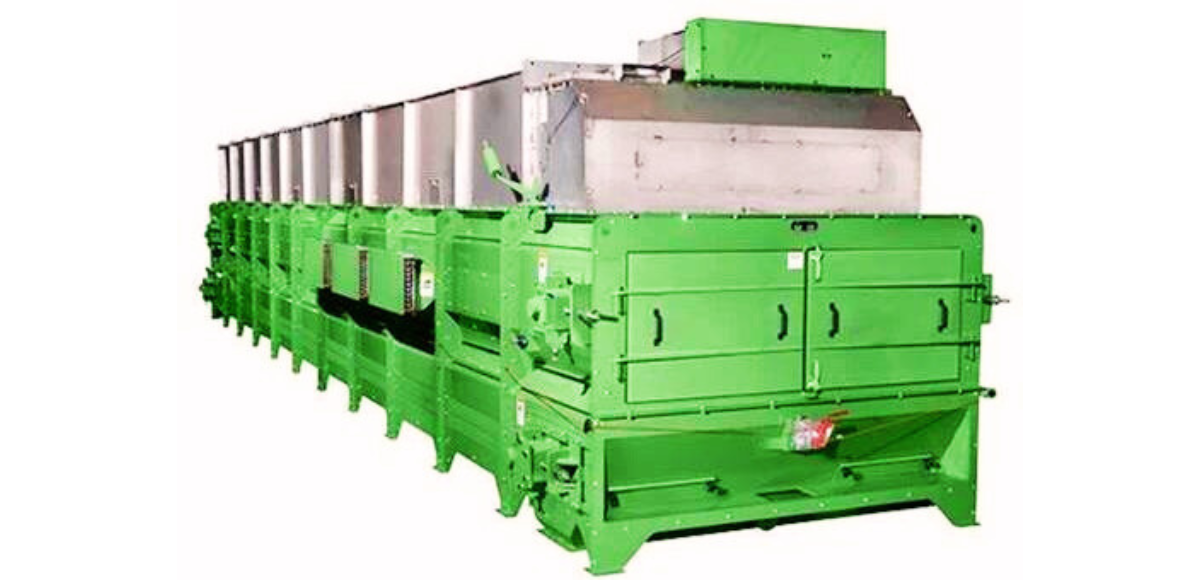

Horizontal Pellet Cooler
Horizontal Pellet Cooler with 10 Fans for Pellet Cooling and Shifting—a state-of-the-art solution designed to gently cool and transport pellets while preserving their quality.The system operates seamlessly in both automatic and manual modes and comes complete with a suitable geared motor rated at 2.5 KW.
Technical Features
Automation Features
- Analytics related to total working hours available on the HMI live status screen.
- High and low digital sensors are fitted to control the bed height of the pellet cooler.
- The driving geared motor runs on VFD, with speed control set via the PLC.
- All analog and digital sensors are connected to the PLC for comprehensive monitoring.
- With AUTO mode, this equipment is interlocked to sync with other equipment.
- On-screen manual start/stop feature available for operator control.
- This equipment included in HMI live screen of this section.
PRODUCT INFORMATION
Min. Order: 1 Piece
Power: 2.5 kW
Capacity: 5TPH
Material: Metal
Automatic: GradeAutomatic
Size: 900MM Width x 12000MM Length.
IncludesSuitable: Geared Motor
