- The robust design to withstand the heavy loading on the hammer mill while grinding, the hammer mill designed with an extremely heavy-duty base frame, the mass of the hammer mill absorbs any vibrations while the stiffness of the frame allows a very small clearance between hammer and screen to achieve specific grinding requirement.
- Multi-point shearing comminution. Hammers are made of 8mm thickness high strength alloy steel through heat treatment.
- SKF BEARINGS for crushing rotor, Reduce bearing maintain consumption but increase the service life of bearings.
- Multiple crushing chamber design
- Specially designed fast open slide gates to change screen and to inspect inside status.
- Crushing rotor lifting device to benefit maintenance on bearings, etc.
- Professionally designed material discharging system to reduce power.
- consumption of induced fan.

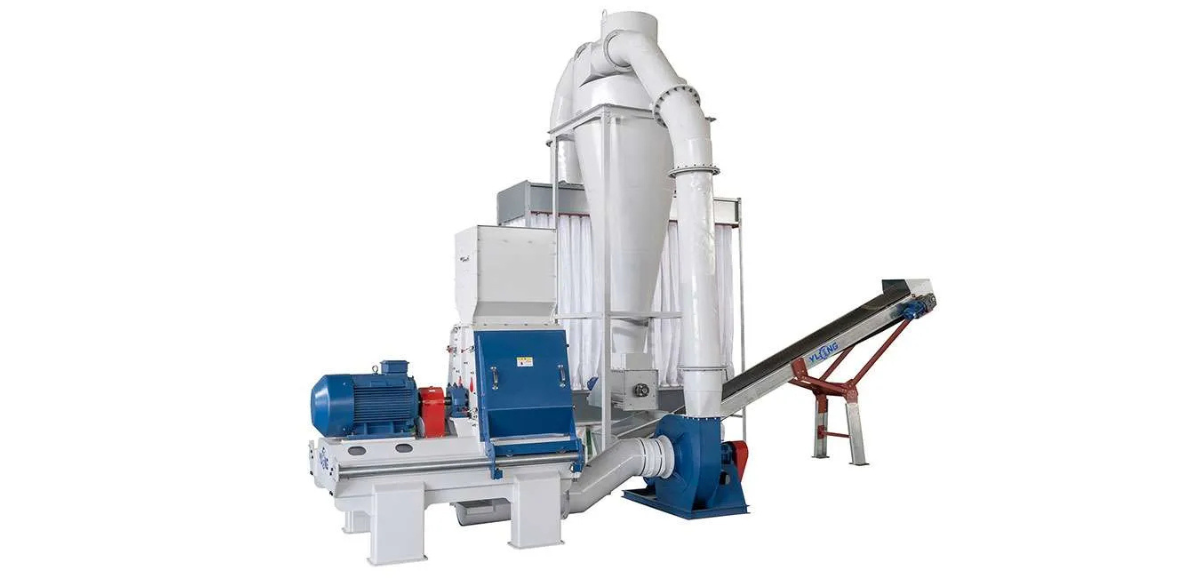

Biomass Hammer Mill
Biomass Hammer Mill For Paddy Straw Grinding System.Its application to reduce shredded & dried paddy straw to size 4-10mm.
Technical Features
PRODUCT INFORMATION
Min. Order: 1 Piece
Power: 173 kW
Voltage: 440V
Capacity: 5TPH
Driven: TypeElectric
Automatic: GradeAutomatic
Color Available: Many Colors
