Pellet Machine
8th Generation Centrifugal Wood Pellet Machine
| Specification | Details |
|---|---|
| Model Number | XGJ560 |
| Power | 160kw |
| Mould | Ring die |
| Raw Material Process | Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Stalks… |
| Output (kg/h) | 1500 – 2000 kg/h |
| Voltage | 3 phases, 380V, 50Hz, 10kV |
| Dimension (L*W*H) | 2600 x 1300 x 2300 mm |
| Certification | CE, ISO |
| Manufacturer in China | |
| Supplier by :SHRE BALAJI BIOMASS SOLUTIONS | |
Biomass Hammer Mill
For Paddy Straw Grinding
| Specification | Details |
|---|---|
| Min. Order (MOQ) | 1 Piece |
| Driven Type | Electric |
| Color | Available In Many Colors |
| Voltage | 440V |
| Capacity | 5 TPH |
| Automatic Grade | Automatic |
| Application | To Reduce Shredded & Dried Paddy Straw To Size 4-10 Mm |
| Quantity | 1 |
| Power (kW) | 173KW |

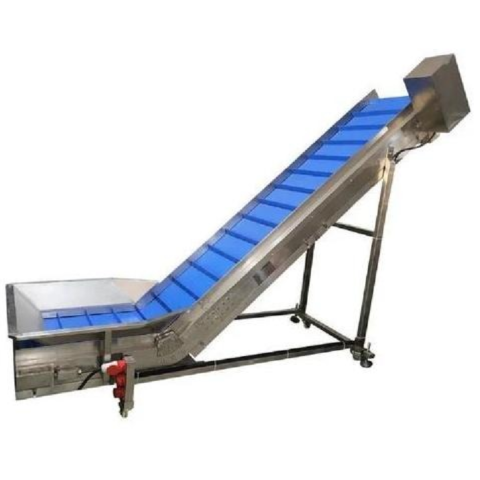

Infeed Chain Conveyor
For Paddy Straw Grinding System (Hammer Mill)
| Specification | Details |
|---|---|
| Min. Order (MOQ) | 1 Piece |
| Application | Moving Goods, To Conveyed Shredded & Dried Paddy Straw In To The Hammer Mill From Storage Bin |
| Includes | Suitable Geared Motor. |
| Device Mode | The device controls are designed to work in both automatic and Manual modes. |
| Used In | Material Feeding to Hammer Mill |
| Quantity | 1 |
| Power (kW) | 2.5KW |
Electric Control Panel
For Pulse Jet Air Bag Filter (APCD)
| Specification | Details |
|---|---|
| Min. Order (MOQ) | 1 Piece |
| Material | Metal |
| Finishing | Polished |
| Voltage | 440V |
| Usage | Industrial |
| Quantity | 1 |
| Panel Box MoC | 1.5mm Thk. CR Sheet with Powder Coating |
| Specialities: | Hassle-Free Functioning, Ease Of Install, High Tensile, High Quality. |
| Country of Origin | India |
Infeed Chain Conveyor
For Paddy Straw Pelletizing (Pellet Mill)
| Specification | Details |
|---|---|
| Min. Order (MOQ) | 1 Piece |
| Sizes | 900MM Width x 6000MM Length |
| Includes | Suitable Geared Motor |
| Device Mode | The device controls are designed to work in both automatic and Manual modes. |
| Capacity | 2.5*2 = 5 TPH |
| Quantity | 2 |
| Power Per (kW) | 2.5×2 = 5 KW |

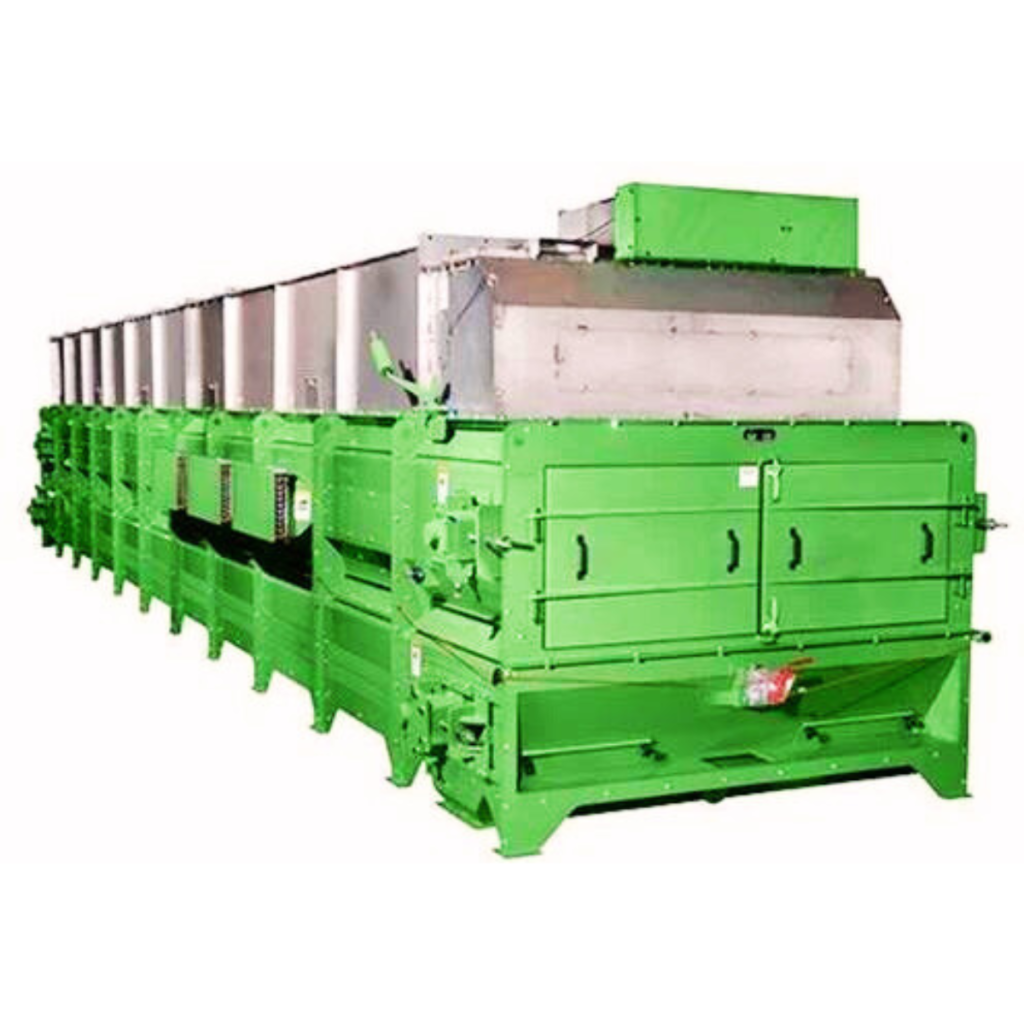

Horizontal Pellet Cooler
With 10 No. Of Fans For Pellet Cooling And Shifting
| Specification | Details |
|---|---|
| Min. Order (MOQ) | 1 Piece |
| Material | Metal |
| Automatic Grade | Automatic |
| Includes | Suitable Geared Motor |
| Device Mode | The device controls are designed to work in both automatic and Manual modes. |
| Size | 900MM Width x 12000MM Length |
| Capacity | 5 TPH |
| Quantity | 1 |
| Power Per KW | 2.5 KW |

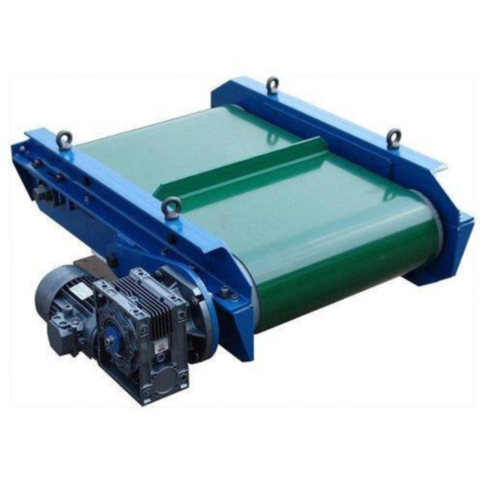

Magnetic Separator
Over Band Type For Auxiliary System
| Specification | Details |
|---|---|
| Min. Order (MOQ) | 1 Piece |
| Usage | For Removing Iron Impurities, On Hammer Mill Input Conveyor |
| Capacity | 3 Feet Wide |
| Magnet Grade | Y35 Grade |
| Gear Box Ratio | 30:1 |
| Gear Type | Worm Type |
| Size | 300mm X 100mm |
| Plate Having Magnet Gauss Value | 2500 Gauss |
| Quantity | 1 |
| Power per KW | 2 KW |
| Uses | For Removing Iron Impurities, On Hammer Mill Input Conveyor |
Shredder Output Chain Conveyor
For Paddy Straw Shredding System
| Specification | Details |
|---|---|
| Min. Order (MOQ) | 1 Piece |
| Material | Metal |
| Automatic Grade | Automatic |
| Condition | New |
| Sizes | 900MM Width x 10500MM Length (Belt), 500MM Width x 9000MM Length (Chain) |
| Includes | Suitable Geared Motor |
| Device Mode | The device controls are designed to work in both automatic and Manual modes. |
Biomass Flash Dryer
For Paddy Straw Drying System
| Specification | Details |
|---|---|
| Min. Order (MOQ) | 1 Piece |
| Application | Dry Paddy Straw to Optimum Moisture Level |
| Power | 40 kW |
| Bearing | SKF/NBC/NTN |
| Production Capacity | 5 TPH |
| Furnace Frame | Square Tube |
| Grate Bed | Area Grill Grates |
| Electric Motors | Siemens/Crompton/ABB |

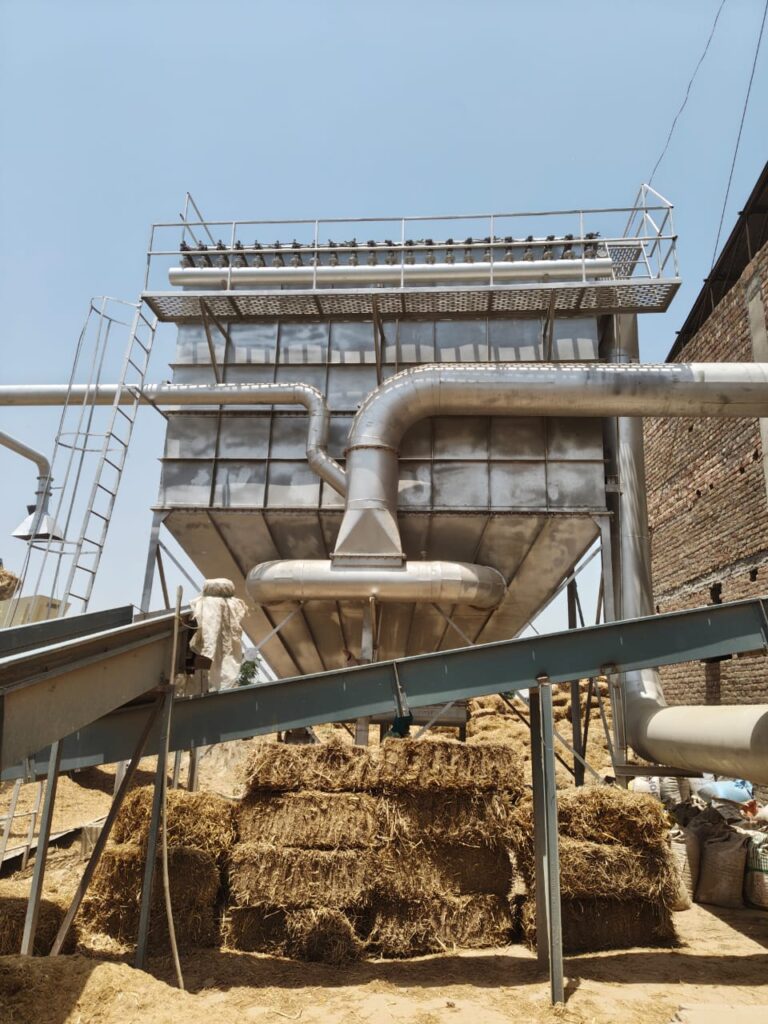

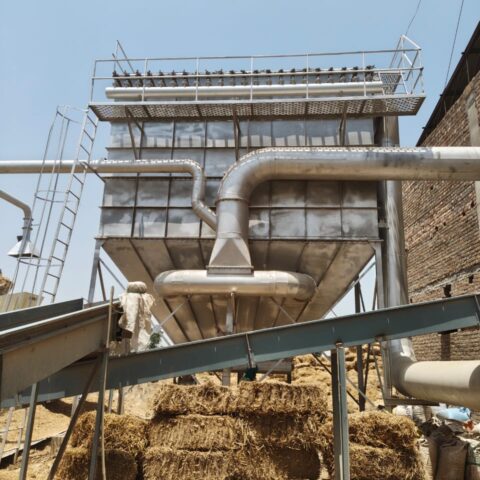

APCD
(PULSE JET AIR BAG FILTER)
| Specification | Details |
|---|---|
| Min. Order (MOQ) | 1 Piece |
| Application | Dry Paddy Straw to Optimum Moisture Level |
| Dimensions (L×W×H) | 4126mm × 2360mm × 3625mm |
| Construction | Mild Steel Sheet, 3.0 mm thick |
| Controller | Sequential Controller, 18 Channels |
| Fan Power | 40 HP Induced Draft (ID) Fan |
| Ducting | MS, 400mm / 450mm / 550mm / 700mm Dia, Fully Automatic |
| Filter Bags | 220 Nos., 150mm Dia, Polyester Non-Woven, Water Resistant |
| Supplier | SHREE BALAJI BIOMASS SOLUTIONS |
Air Compressor
For Paddy Straw Drying System
| Specification | Details |
|---|---|
| Min. Order | 1 Piece |
| Type | Compressor |
| Warranty | 1 year |
| Motor | 1 No. x 7.5 HP |
| Tank | 220 Lts |
| Free Air Delivery | 19 cfm |
| Operating Pressure | 5-7 Kg/cm² |
Belt conveyors
The belt conveyor has the advantages of strong conveying capacity, long conveying distance, simple structure and easy maintenance, and can easily implement programmed control and automatic operation.
